Differential Scanning Calorimeter DSC7000 Series

1. Highest sensitivity, superior baseline stability and repeatability
New sensor achieves tripled sensor sensitivity by the multiple thermocouples (compared to the conventional products of Hitachi High-Tech Science).
New furnace which is composed of 3 layer insulation wall and the optimized heating and cooling structure suppresses the influence of baseline fluctuation, and increases temperature following capability. These achieve world' s leading performance of DSC sensitivity less than 0.1 µW (RMS noise less than 0.05 µW) and baseline repeatability ±5 µW. It enables the more reliable. (DSC7000X)

2. Superior Temperature Followability
New furnace delivers the expanded temperature range up to -80 to 500°C in case of using the Electrical Cooling Unit. Cooling control performance enables down to -50°C at 10°C/min linearly. (DSC7000X)
The Auto LN2 Gas Cooling Unit improves the cooling efficiency and the amount of LN2 used decreased.

3. Improved Cooling Performance

Newly designed cooling systems including Auto LN2 Gas Cooling System and Electronic Cooling System are available for the DSC7000 Series. The cooling performances of both systems are improved.
4. Excellent Expandability and Option Line-Up
The auto sampler can be attached easily. The reliable routine measurement can be achieved by the combination of the Auto Sampler and the Mass Flow Controller.
The photochemical reaction measurement can be achieved by attaching UV irradiation unit.
The DSC7000 series can observe a sample with a continuous image during the measurement by the Real View Sample Observation Unit.

Auto Sampler Unit

UV Irradiation Unit

Sample Observation Unit

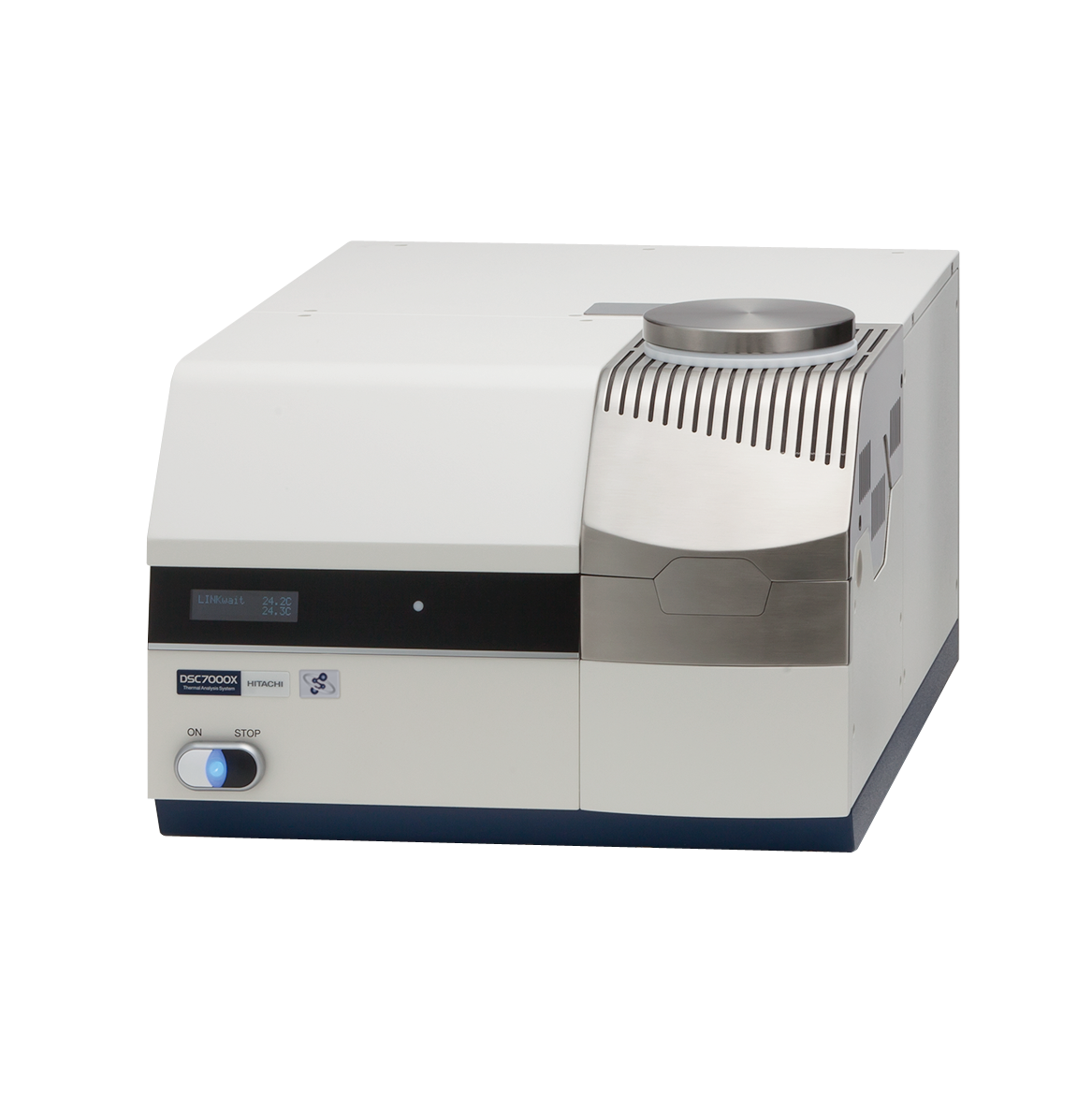

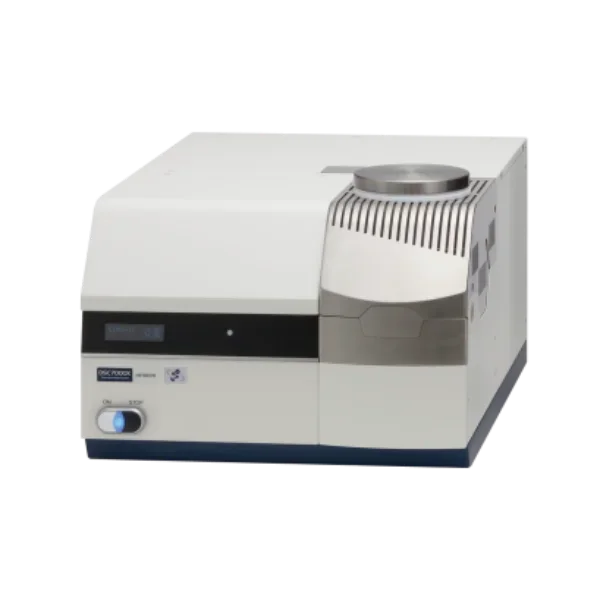

The DSC7000X is newly added to the lineup of thermal analysis.

DSC7000X achieves unbeatable DSC sensitivity and repeatability with a superior new sensor and furnace. Hitachi High-Tech Science supplies the state of the art DSC for real experts.
DSC7000X improves the reliability of data due to the superior sensitivity and repeatability with enhanced expandability. DSC7000X is ideal for a variety of applications including small samples, real-time sample observation and photochemical reactions as well as general DSC measurements. DSC7000X meets the requirements from material development to product quality control.
