Copley DTGi Series Tablet Disintegration Tester

The Copley DTGi Series represents decades of innovation and experience in the field of pharmaceutical testing, designed to simplify workflows within both Research & Development (R&D) and Quality Control (QC) environments,

Suitable for a wide range of tablet and capsule types (e.g. plain-coated tablets, delayed-release, gelatine etc.), the DTGi tester series is an affordable range of disintegration testers that complies fully with specifications defined in Ph. Eur., USP and associated Pharmacopoeias.

Controlled via our intuitive touchscreen interface, the Copley DTGi series features 1, 2, 3 and 4 station units as well as a 2-station independent control unit, ideal for testing tablets and capsules under varying conditions.

Features

• Ph. Eur. and USP and compliant
• Integrated, precision temperature control and measurement
• Single-point electronic temperature calibration
• Intuitive touchscreen control to simplify operation
• One to four test station unit configurations, plus independent station control unit option
• Extensive data reporting output options: RS 232, USB A and USB B
• Adjustable stroke frequency control for accelerated or high sensitivity testing
• Option to automate and remotely control DTGi systems

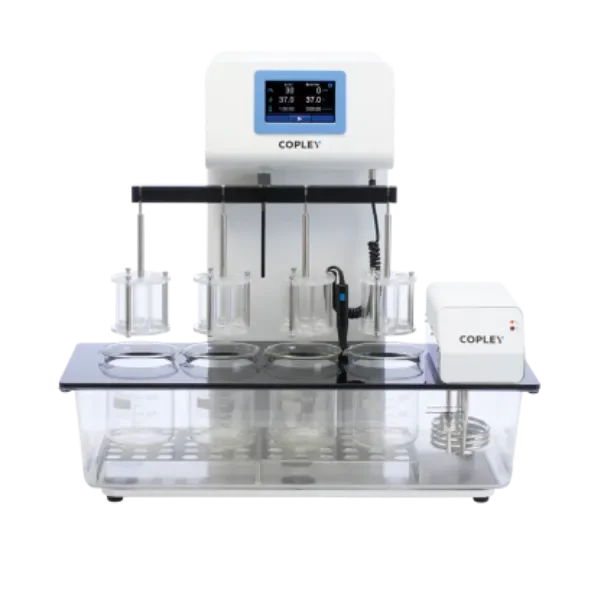

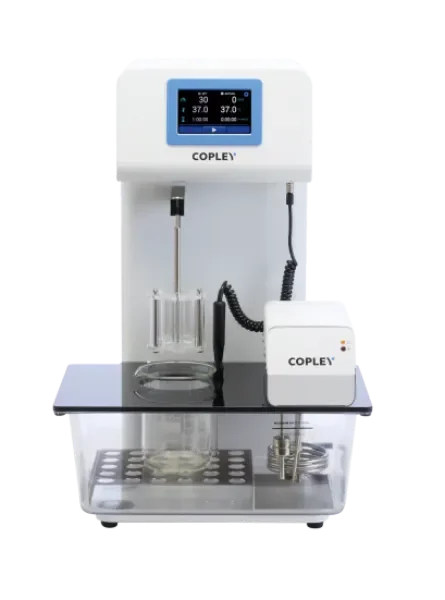

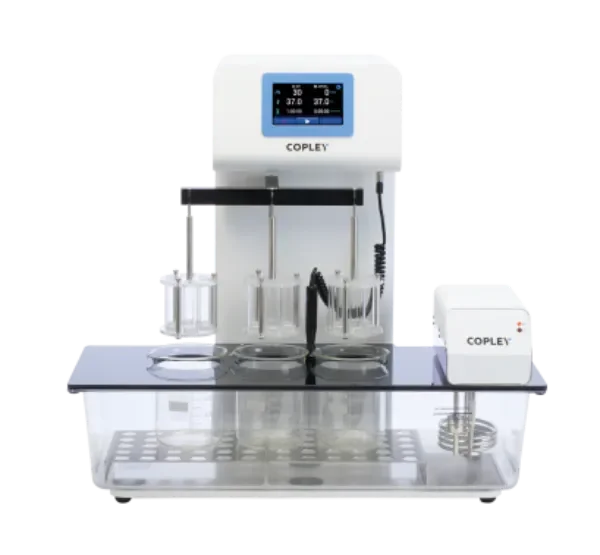

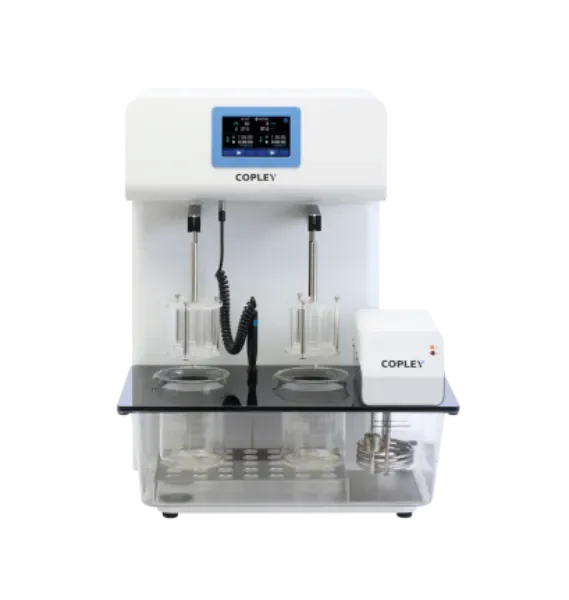

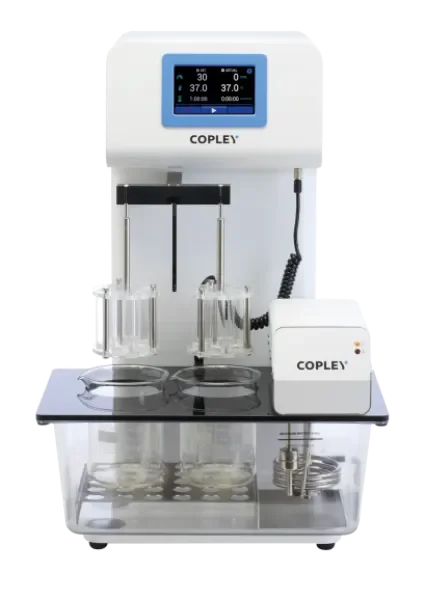

Model	DTG 100i	DTG 200i	DTG 300i	DTG 400i	DTG 200i-IS
Product Image
Cat. Number	1231	1232	1233	1234	1238
No. Test Stations	1	2	3	4	2
Tablet Capacity	6	12	18	24	12
Independent Station Control	No	No	No	No	Yes
Unit Dimensions (w x d x h)	450 x 473 x 657 mm	450 x 473 x 657 mm	700 x 473 x 657 mm	700 x 473 x 657 mm	515 x 473 x 657 mm
