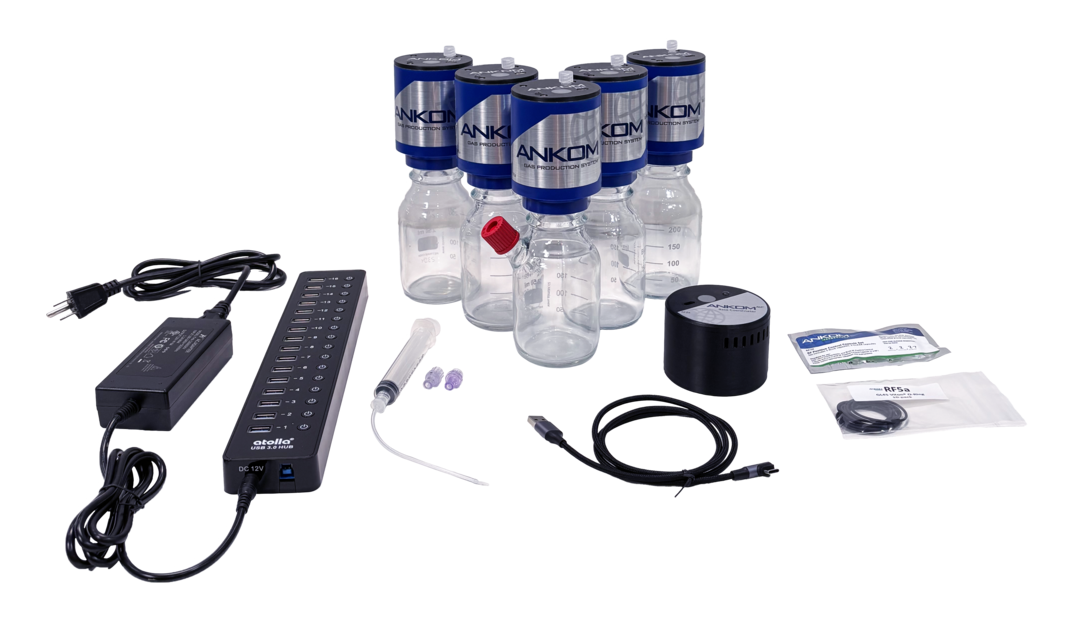

ANKOM RF2000 Gas Production System

Wireless Gas Production Measurement
The ANKOM RF2000 Gas Production System provides an easy to use method for monitoring and measuring gas production.

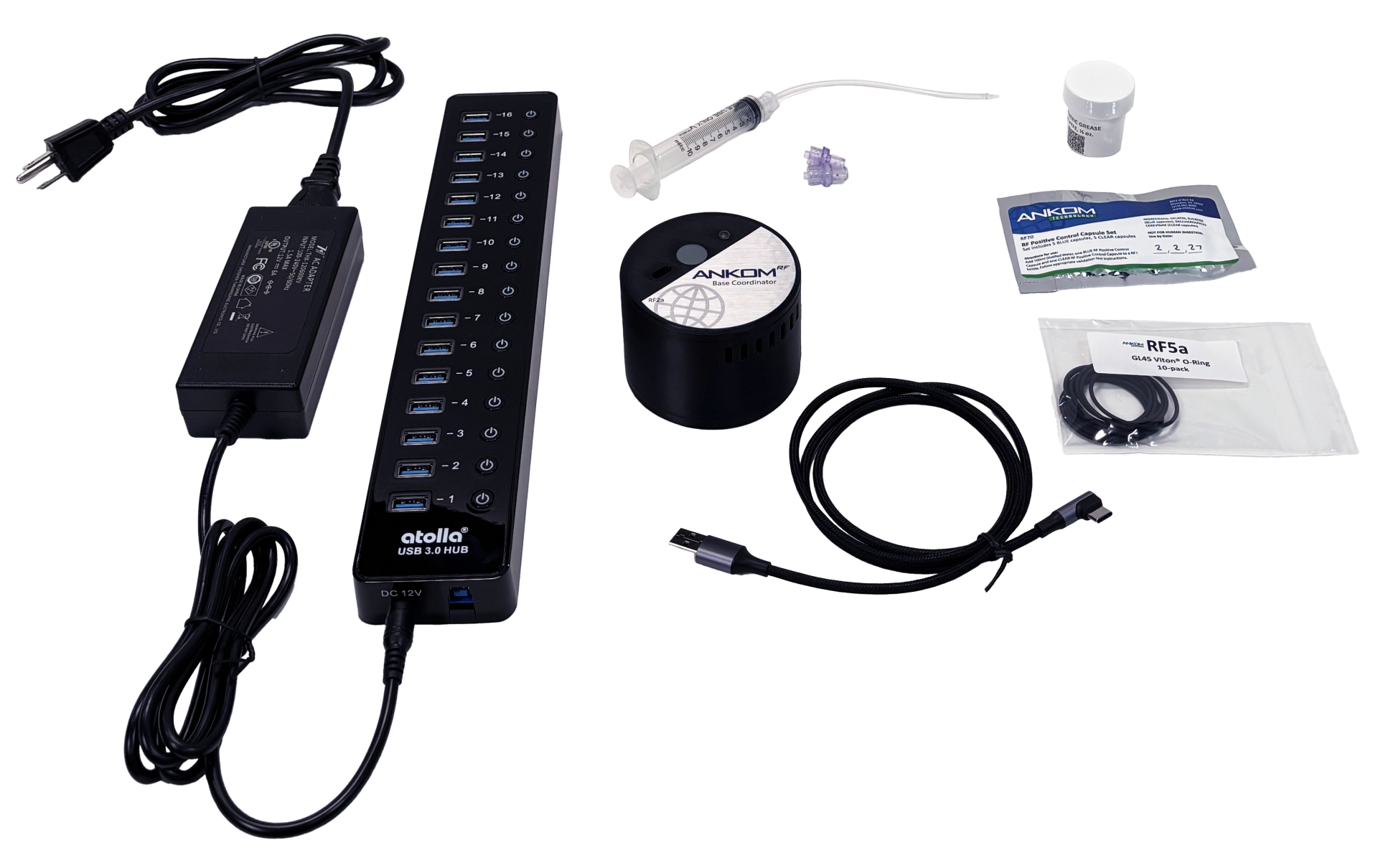

Starter Kit includes:
RF2000 Base Coordinator, 16-port Charging Station, Software, Vent Valve Cleaning Kit, Luer Duckbill Check Valve, Male Luer Cap and O-Rings.
You Choose the Bottle Size: When ordering specify 250ml, 500ml or 1000ml bottle size.

Easily measure kinetics of microbial metabolism
Modules can be easily paired and reassigned to any coordinator by the end user
Modular and expandable up to 75 Modules (RF1a) per system
High-sensitivity pressure measurement
Remotely control pressure release and monitor performance
Real-time data interface with Excel for graphing
Gas sampling  or liquid sampling capability available
Easy USB charging
Pressure can be output in psi or kPa

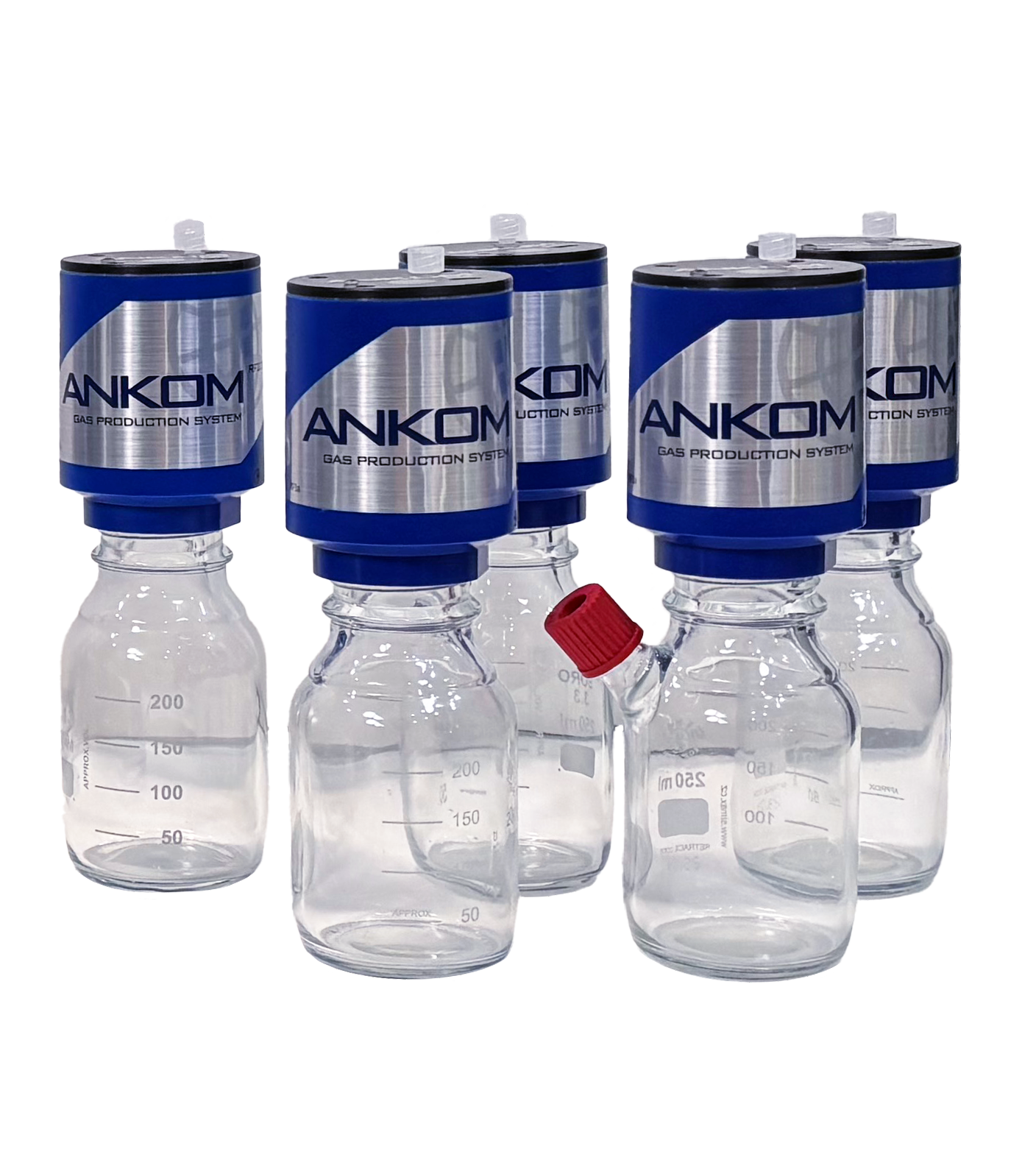

The ANKOM RF2000 Gas Production System provides an easy to use method for monitoring and measuring gas production. The system consists of sample bottles in 250ml, 500ml or 1000ml sizes, RF pressure sensor modules, a "zero Remote" that measures ambient pressure, a computer interface base coordinator and operational software that can be used with any PC using a Windows 10 (or higher) based operating system.

Samples and microbes (or other fermentation sources) are placed in the bottles; the RF sensor module is attached and placed in an incubator. The pressure of each bottle can be measured at user selected time intervals. Pressure measurements are recorded on a standard Excel spreadsheet and gas production curves can be generated by the users. Pressure can be outputted in psi or bar. Any application requiring the monitoring of gas production or vacuum (BOD) can be supported.

Current and potential applications include, but are not limited to, Ruminant Nutrition, Non-ruminant Animal Nutrition, Human Digestion, Yeast Vitality/Activity, Dough Rising Power, Biomass to Energy, Biodegradability
Soil Quality, and more.

In Europe the system has been successfully used for VDI 4630 - Fermentation of organic materials - Characterisation of the substrate, sampling, collection of material data, fermentation tests and DIN 38414-S8 Fermentations tests (GB21) - Method for examination of the biodegradability of a substance.
